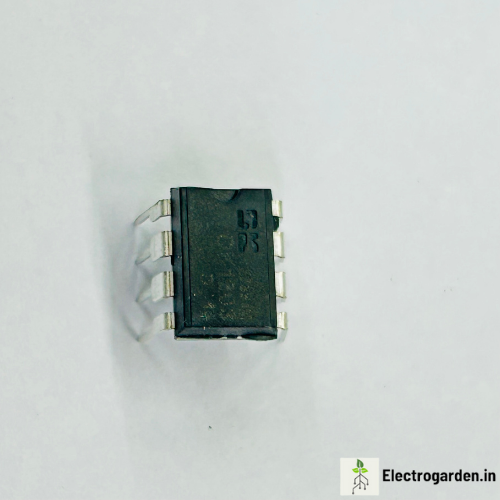

DK 1203 8PIN DIP IC

Product Description: Model: DK 1203 IC Package Type: DIP 8 PIN Input Voltage Range: 85V to 265V Integrated 700V Power MOSFET: Yes Self-Powered Circuit: No need for auxiliary winding power supply Startup Circuit: Integrated PWM Control: Current mode Working Voltage Range: 4V to 6V Switching Frequency: 65kHz Light Load Mode: Automatically enters burst mode Protection Features: Over-temperature, over-current, over-voltage, and overload Standby Power Consumption: < 0.3W Applications: AC/DC power adapters, DVD/VCD power supplies, air conditioner power supplies, induction cooker power supplies, LED power supplies, set-top box power supplies Features: Wide Input Voltage Range: 85V to 265V Built-in High Voltage Power MOSFET: 700V Self-Powered Technology: Eliminates need for auxiliary power supply Integrated Startup Circuit: Ensures reliable operation Current Mode PWM Control: For stable output Protection Mechanisms: Includes over-temperature, over-current, over-voltage, and overload protection Energy Efficient: Low standby power consumption of < 0.3W High Switching Frequency: 65kHz for efficient power conversion Compact DIP 8 PIN Package: Easy to integrate into various applications Applications: AC/DC Power Adapters DVD/VCD Power Supplies Air Conditioner Power Supplies Induction Cooker Power Supplies LED Power Supplies Set-Top Box Power Supplies Datasheet Highlights: Voltage Rating: 85V to 265V Power Range: Up to 18W Standby Power Consumption: < 0.3W Operating Temperature: -20°C to 125°C Storage Temperature: -55°C to 150°C The DK 1203 IC offers robust performance and reliable protection features, making it ideal for a wide range of power supply applications. Its compact DIP 8 PIN package ensures easy integration into existing systems. For more details, refer to the complete datasheet.
