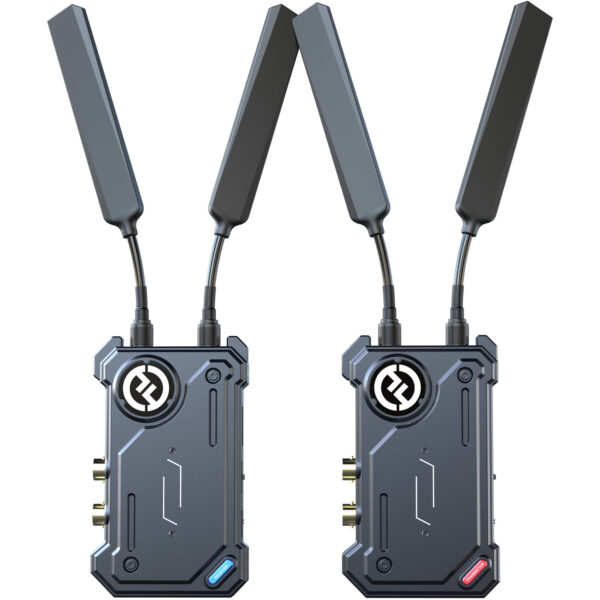

Hollyland Cosmo C1 SDI/HDMI Wireless Video Transmission System

Description Key Features Wireless Video Transmitter/Receiver Set Transmitter HDMI/SDI Input, SDI Loop Out Receiver HDMI & 2 x SDI Outputs OLED Screen, USB Type-C Power Input 1000′ Line-of-Sight 1080p60 Transmission 5.1 to 5.9 GHz Frequency Range AES-128 Encryption, 40 ms Latency L-Series Battery Plates on TX/RX DC Adapter Power or Optional Battery Video I/O Transmitter: 1 x BNC (3G-SDI) Input Transmitter: 1 x HDMI Input Transmitter: 1 x BNC (3G-SDI) Loop Output Receiver: 2 x BNC (3G-SDI) Output Receiver: 1 x HDMI Output HDCP Support Not Specified by Manufacturer Embedded Audio HDMI/SDI: 2-Channel Audio I/O None Power Transmitter/Receiver: 1 x USB-C (2 A / 5 VDC) Input Other I/O Transmitter/Receiver: 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Input Encryption 128-Bit AES Wireless Wireless Range 1000′ / 304.8 m Channel Bandwidth 20 MHz Frequency Range US: 5.1 to 5.8 GHz Latency 40 ms RF Power 22 dBm RF Sensitivity -80 dBm Wi-Fi Yes Bluetooth None Format Support Video Format HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 Audio Format Not Specified by Manufacturer Timecode Support Yes Power DC Input Power 6 to 16 VDC Battery Type Transmitter/Receiver: 1 x L-Series Power Consumption Transmitter/Receiver: 9 W Mounting Mounting 1 x Cold Shoe Environmental Environmental Protection None General Dimensions Transmitter/Receiver: 4.5 x 2.8 x 1.3″ / 115 x 70 x 32 mm, Excluding Battery Plate Weight Transmitter: 7.5 oz / 214 g, Excluding Antenna Receiver: 7.4 oz / 210 g, Excluding Antenna
