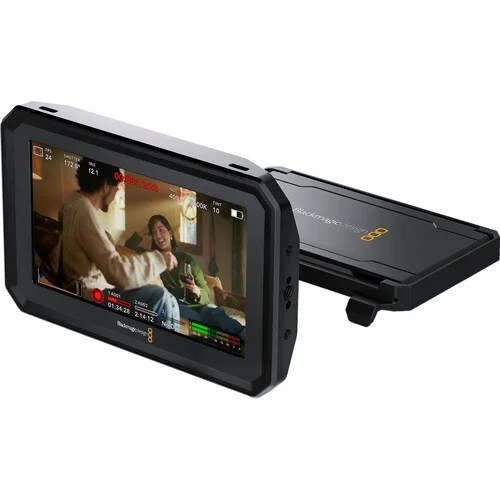

Description Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. It provides an additional monitoring and camera control option that can be mounted anywhere so it’s perfect for use when rigging or other accessories block Blackmagic PYXIS’ internal display. The bright 1500 nit high brightness screen makes monitoring easy, even in bright sunlight and includes a removable sunshade that also folds up to protect the monitor. Blackmagic PYXIS Monitor is easy to set up with a single USB-C cable connection for video, power and camera control. Connections USB-C with Locking Connector Video, power, data and software updates. Features Display Size 5 inch. Display Resolution Full 1920 x 1080. Display Type LCD capacitive touchscreen. Display Brightness 1500 nits. Frame Rates Up to 60fps. Tally Rear facing LED tally light. Accelerometer Automatically rotates image when monitor mounted upside down. Mounting Mounting Points 1 x 1/4-20 bottom mounting point with ARRI locating pin pattern. 2 x M4 bottom mounting points. 1 x 1/4-20 side mounting point with ARRI locating pin pattern. 2 x M4 side mounting points. Compatible Cameras Blackmagic PYXIS 6K Blackmagic PYXIS 6K PL Blackmagic PYXIS 6K EF Blackmagic URSA Cine 12K LF Blackmagic URSA Cine 17K 65
