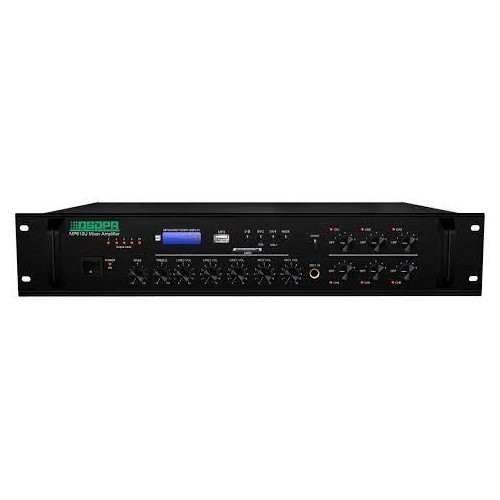

DSPPA MP610U 6 Zones Paging and Music Mixer Amplifier

MP610U 250W 6 Zones Paging Amplifier with USB/ SD/ FM/ Bluetooth This DSPPA MP610U 6 Zones Paging and Music Mixer Amplifier is rated at 250W and 4-16 Ω speaker outputs are provided. There are 4 unbalanced microphones inputs and 3 aux inputs. Bass and treble controls are provided. This amplifier can be applied to different occasions, such as supermarkets, classrooms, etc. Extensive protection from short-circuit, overload, and high temp is ensured. An automatic cooling system ensures an extremely quiet sound system.  It’s also called pa mixer amp for short. SPECIFICATIONS Model MP210U MP310U MP610U MP1010U Rated Output 60W 120W 250W 350W Output regulation ≤3dB (from off-load to full load) Input sensitivity Microphone :≤3mV (unbalanced) Line:≤300mV (unbalanced) Frequency response 80Hz-16KHz (±3dB) Distortion ≤1%（1KHz，normal operating status） S/N Ratio Line:≥74dB Tone Bass:  ±10dB（at 100Hz） Treble:  ±10dB（at 10kHz） Protection DC voltage; overload; short-circuit. Mute Input signals from MIC 1 override other input signals Power supply AC 220-240V/50-60Hz Power Consumption 120W 250W 500W 650W Outer Packing Size(mm) (L×W×H)555×455×185 Unit Size (mm) (L×W×H)484×355×88 Gross Weight 11.7kg 13.5kg 16kg 17kg Net Weight 9.7kg 11.5kg 14kg 15kg Connection
