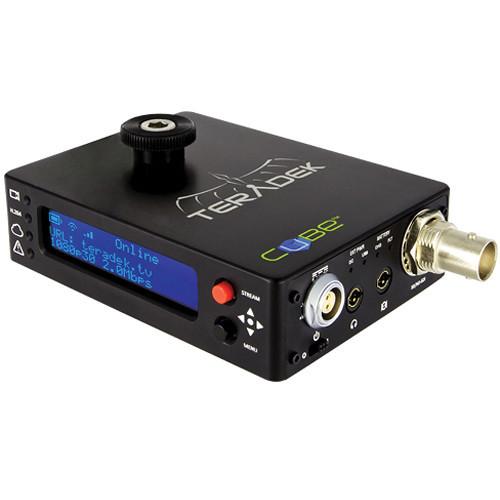

What’s in the Box • 110-240V AC Power Adapter • SDI Cable • Ethernet Cable • Hot Shoe Adapter with Thumbscrew • 1-Year Warranty Cube 106 The Cube 106 is a PoE HD video encoder for HD-SDI sources. This particular unit streams via Ethernet or a single 3G/4G LTE USB dongle to Teradek decoders or content delivery networks. The Cube 106 includes all of the same great features of the original Cube such as a low power compact aluminum chassis, comprehensive transport protocol support (RTP / RTSP / RTMP / MPEG-TS*), and compatibility with any streaming video platform. *MPEG-TS sold separately Technical Specs The Teradek Cube 106 is an H.264 encoder that streams HD video over Ethernet and cellular. This unit can be powered over Ethernet (PoE). Video Input: HD-SDI WiFi: None Video Output: None Mount: Hot Shoe Mount Display: OLED Display Battery: None Power Input: 2 Pin Connector Power & Power over Ethernet (PoE) Power Output: None Storage: microSD Ethernet: 10/100BASE-T USB: USB 2.0 host port Audio: Analog Line or Mic in,Headphone output VIDEO INPUTS HD-SDI, SD-SDI: BNC SUPPORTED RESOLUTIONS 1080i 50/59.94/60 1080p 23.98/24/25/30 1080PsF 23.98/24/25 720p 50/59.94/60 576i 480i VIDEO CODEC Compression Algorithm: Baseline, Main and High Profile H.264 Main and Baseline profiles Bit Rate: 250 Kbps to 10 Mbps Built in Video Scaler and Deinterlacer VIDEO STREAMING SUPPORT Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP Transport Protocols: RTP, RTSP, RTP over HTTP, MPEG-TS (Optional paid license), Zixi (Optional paid license) AUDIO Audio Compression: AAC-LC, MPEG Layer 2 Embedded Audio Input Analog Line or Mic in, adjustable gain Headphone output, adjustable volume PHYSICAL Dimensions: 2.5″W x 3.5″D x .9″H Weight: 8oz INTERFACES Feature-rich WebUI for configuration and control OLED LCD Display with joystick Navigation buttons On/Off and Reset Switch Micro SD Powered USB 2.0 host port NETWORK Ethernet: 10/100BASE-T USB Modem support** Power 2 Pin Connector Power input Nominal Power Consumption: 3W 2-Pin Connector Power Input: 6-28V DC PoE Power Input: 36-57V DC *Proxy recording currently supports select RED, Arri, Sony and Canon cameras. Please contact Teradek Sales for more information regarding Proxy Recording. Cube™ Firmware Update Teradek Forum (10-0106) – Sematron Italia official Teradek distributor – Sematron Italia distributore ufficiale Teradek
