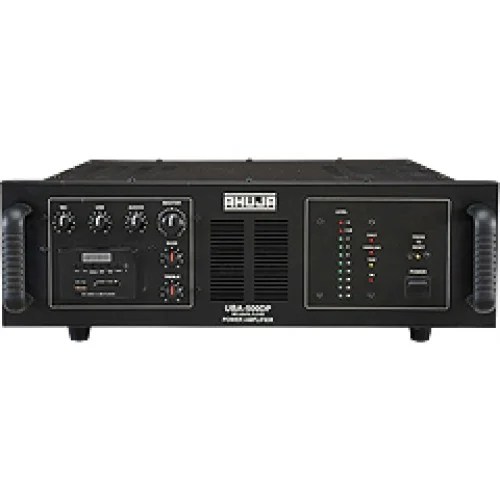

PA mixer Amplifier 500 watt Built-in MP3 Digital Player with remote control Model No. Ahuja UBA-500DP FEATURES Designed for use in a wide variety of PA applications and DJ performances. UBA-500DP is a 500 Watts amplifier which can be connected to various input sources like a Microphone, PA Mixer, DJ Mixer, CD Player, Cassette Player, Keyboard etc. The amplifier has cut and boost type tone controls which provides precise and accurate tonal setting of the programme. Line Input and Line Output have been provided to enable interconnections with other power amplifiers. Built-in MP3 Digital Player with remote control. Circuit Protector Device has been provided which safeguards the amplifier against overload and short circuit. The amplifier has built-in protection against over voltage in AC mains supply while operating on a Genset. Indicator LEDs for Power, Signal, Temp, Overload and Fault conditions have been provided. Ease of operation, combined with service accessibility has been optimized in the design. 2 speaker matching provided in addition to 4 & 8 . SPECIFICATIONS Power Output 650W RMS Max. 500W RMS at 10%THD 475W RMS at 5% THD 450W RMS at 2% THD Output Regulation 2dB no load to full load at 1kHz Input Channels 1×Mic 1mV/4.7kΩ Input Channels 1×Mic 1mV/4.7kΩ (Mic source impedance 50 to 1kΩ) 1 x Aux 100mV / 470kΩ 1 x Aux 250mV / 20kΩ 1 x CD 250mV/20kΩ Line Input 1V/10kΩ Digital Player MP3 Player with Remote Control (USB, SD and MMC card reader) Frequency Response 50Hz – 18,000Hz ±3dB Signal to Noise Ratio 60dB Tone Controls Bass (100Hz) : ± 8dB Treble (10kHz): ±8dB Line Output 1V/1kΩ Output Taps for Speaker Matching 2Ω, 4Ω & 8Ω Power Supply AC: 220-240V 50/60Hz Protections 2 x 20 Amp fuse in ± DC supply 5 Amp circuit breaker in AC mains Protected against high AC mains voltage, overload and temperature AC Power Consumption 1000 VA Dimensions W482 x H166 x D435 mm Weight 23.5kg
