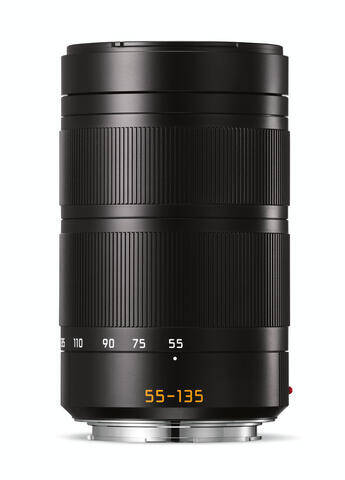

Description Technical Data Lens APO-Vario-Elmar-TL 55–135 f/3.5–4.5 ASPH. Order no. 11 083 Compatible cameras All Leica cameras with Leica L bayonet Field angle (diagonal, horizontal, vertical) At 55 mm: approx. 28°, 24°, 16°, at 200 mm: approx. 12 °, 10°, 7°, corresponding to around approx. 80 – 200 mm focal length in 35 mm format. Optical design Number of lenses/groups: 12/10. Aspherical surfaces: 1. Position of entrance pupil at infinity: at 55 mm: -54.4 mm, at 200 mm: -27.3 mm. Distance setting Setting/Function: Electronically controlled. Mode selectable using camera menu: Automatic (AF) or manual (M), in AF mode manual override possible at any times with setting dial. Focusing range: 1 m to ∞. Smallest object field/largest scale: at 55 mm: approx. 403 x 268 mm/f/17.1, at 135 mm: approx. 188 x 125 mm/f/8.0. Aperture Setting/Function: Electronically controlled, adjustment using dial on camera, third values also available. Lowest value: 16. Bajonet fitting Leica L bayonet. Filter mount/ Lens hood External bayonet fitting for lens hood (included), internal thread for E60 filters, filter mount does not rotate. Finish Black anodized. Dimensions and Weight Length to bayonet mount: approx. 110/165 mm (without/with lens hood). Largest diameter: approx. 68/81 mm (without/with lens hood). Weight: approx. 500/547 g (without/with lens hood).
