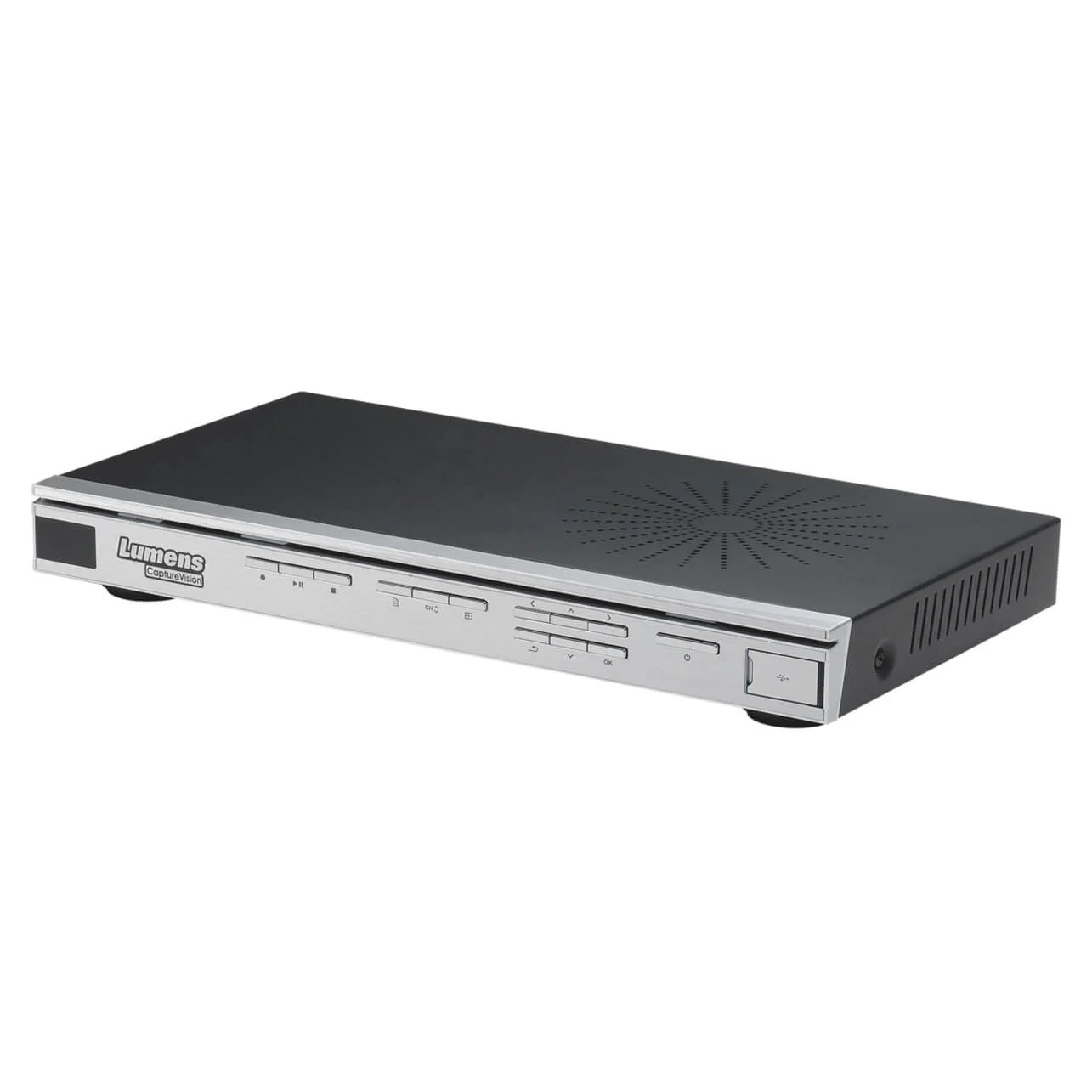

Lumens VS-LC102 Lecture Capture The Lumens CaptureVision Station is equipped with HDMI / VGA/ RJ-45 ports and supports Full HD 1080p video and audio recording. Lecture Capture System – Recording & Streaming Device Key Features: Supports up to Four Input Sources Concurrently, with Full HD Graphical User Interface Allows Ease of Use Easy Installation Ability to Produce Microfilm Instantly, without Post-Production Distance Learning Backup Recorded Video Instantly Built-in 1TB Hard Drive Specifications: Video Inputs* HDMI/ VGA/ RJ-45 Max. Video-In Channels Maximum 4 channel synchronized recording HDMI/ VGA/:2 channels Full HD network camera:4 channels Video-In Modes HDMI: 480i~1080p/60fps VGA Video: 480i~1080p/60fps VGA PC: 640*480~1920*1080 Audio Inputs Line in, Mic Max. Audio-In Channels 3.5mm Stereo: 2 channels Video Processing-Compression H.264/ AVC Frame Rate Max. 30fps Video Processing-Bit Rate 64Kbps~24Mbps Resolution Max. 1080p Audio Processing-Compression AAC-LC Audio Processing-Bit Rate 32Kbps~512Kbps External Storage USB / eSATA Internal Storage Built-in 1TB hard disk (Only for VS-LC102) Locally Stored File Output Format MP4 Support Format Output : RTP, RTMP Streaming Format Output : RTP, RTMP Main Output Mode (Max.) HDMI / VGA : 1080p/60fps Display Layout Full screen/ picture-in-picture/ multi-channel split screen, up to nine layouts Recording Layout Multi-View streaming, up to nine layouts Index (keyword tagging) Automatic and manual index insertion Auto Logo Insertion During Recording Yes, through web-based back stage management setting Share live streaming from CaptureVision Station Yes, Multicast Webcasting Support Youtube Live, UStreaming, Adobe Media server Local File Playback Yes Select by Index Yes, browse playable content through knowledge point index View course content on any device Yes Post Lecture Editing Yes, through web-based back stage Post Index Points Editing Yes, through web-based back stage to add and delete index points Auto Logo Title and Ending Insertion Yes, through web-based back stage to insert logo title and endings when exporting lecture video Remote Control Yes, included with purchase External Control Yes, supports RS-232 interface port Power Supply 12V/ 2A Temperature / Humidity 0~45°C / 90% Dimensions 354mm(L) x 187.96mm(W) x 45.97mm(H) 13.94 inch(L) x 7.4 inch (W) x1.8 inch (H) Weight 1.33 kg （ 2.93 lbs） Station Control Web-based back stage Language English / Simplied Chinese / Traditional Chinese Accessories Remote control / power adapter / quick guide
