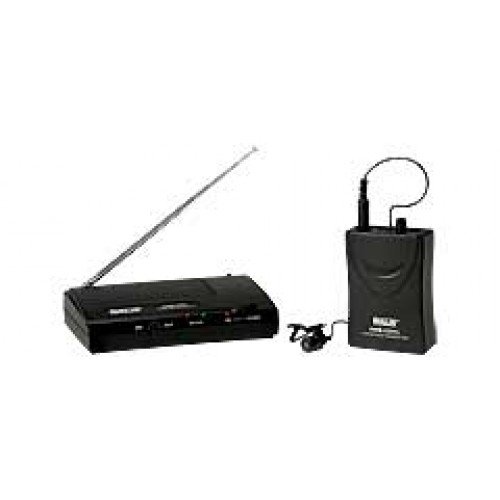

Wireless Collar VHF Microphone Model No. Ahuja AWM-520VL Ahuja introduces a compact & reliable single channel VHF Wireless Microphone AWM-520VL. It features a tie-clip microphone with a VHF high band body-pack transmitter and a sensitive noise squelch receiver. Elegant and affordable single channel VHF wireless microphone available in six different frequencies. Electrect condenser unidirectional microphone. Transmitter has an on ON/OFF switch and a LED for ON indication. Stylish table-top receiver with a telescopic antenna & noise squelch circuitry. Power ON/OFF switch and output volume control on the front panel. 1/4″ (6.3mm) phone jack for audio output on the rear panel of the receiver. Microphone operates with 1×9V battery. Receiver operates on 9V DC through an AC adaptor, supplied along with the microphone. Specification: MICROPHONE RF Output Power 10mW (Max.) Modulation Mode FM Microphone Element Condenser, Cardioid Maximum Deviation ± 25kHz Frequency Response 40Hz-13kHz Power Requirement 9V Battery Current Consumption <30mA Controls ON/OFF Switch, Output Volume Control Indication Red LED for Microphone ON Dimensions W63×H33×D100 mm Weight 0.09kg (without battery) RECEIVER Frequency Stability ± 0.005% Audio Output 0-50mV S/N Ratio >80dB Distortion <0.5% Antenna Type Telescopic Power Requirement 220V-240V AC 50Hz for AC adaptor (supplied alongwith) Controls Power Switch, Output Volume Control Indication Red LED for Power ON, Green & Red LEDs for Signal Dimensions W152×H40×D110 mm Weight 0.20kg ACCESSORIES . 1×Connection Cable, 1×AC Adaptor, 1×9V Battery
