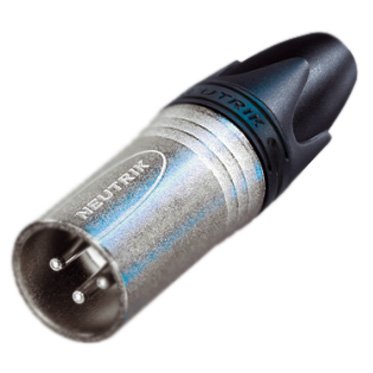

Neutric-XLR Cable Connectors NC3MXX The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. Features & Benefits Male connector with improved locking recess without “window”, more stringent housing increases durability Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster Boot with polyurethane gland gives high protection to cable bending stresses Colored rings and boots available for coding or identification Sleek and ergonomic design – valuable and handy Rugged zinc die cast shell, long lasting and dependable Internal thread on shell is well protected against any damage Branded with unique hologram – guarantees genuine and authentic Neutrik product Technical Information Product Title : NC3MXX Connection Type :XLR Gender : male Electrical Capacitance between contacts : ≤ 4 pF Contact resistance:≤ 3 mΩ Dielectric strength : 1,5 kVdc Insulation resistance : > 10 GΩ (initial) Rated current per contact : 16 A Rated voltage : < 50 V Environmental Flammability: UL 94 HB Standard compliance: IEC 61076-2-103 Protection class: IP 40 Solderability: Complies with IEC 68-2-20 Temperature range: -30 °C to 80 °C Mechanical Cable O.D. : 3.5 – 8.0 mm Insertion force : ≤ 20 N Withdrawal force : ≤ 20 N Lifetime : > > 1000 mating cycles Wiresize : max. 2.5 mm² Wiresize : max. 14 AWG Wiring : Solder contacts Locking device : Latch lock Material Boot: Polyurethan Contact plating : 2 µm Ag Contacts : Brass (CuZn39Pb3) Insert : Polyamide (PA 6.6 30 % GR) Shell : Zinc diecast (ZnAl4Cu1) Shell plating : Nickel Strain relief : Polyacetal (POM) Note : Order should be minimum 10 pcs.
