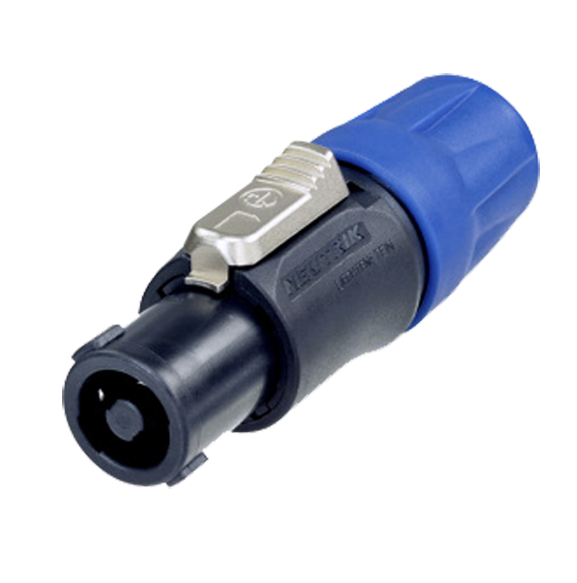

Neutrik-XLR Cable Connectors NL4FC 4 pole cable connector, chuck type strain relief.The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination. Features & Benefits Up to 30 A rms current rating Reliable and robust, easy and fast to assemble Cable strain relief for 6 – 15 mm cable O.D. Accurate and dependable twist lock latching system “Quick Lock” Glass reinforced material for insert and housing, long-lasting and dependable User friendly latch design for easy handling Unique Neutrik chuck type strain relief Branded with unique hologram – guarantees genuine and authentic Neutrik product Technical Information Product Title : NL4FC Connection Type : speakON Gender : female Electrical Contact resistance :≤ 3 mΩ (after lifetime) Dielectric strength : 4 kVdc (peak) Insulation resistance : > 1 GΩ (after dampheat) Rated current per contact : 30 A rms continuous Rated current per contact : 40 A audiosignal, duty cycle 50 % Rated voltage : 250 V (Insulation) Attention : speakON is NOT to be used as an AC mains or power supply connector! Environmental Flammability:UL 94 V-0 Solderability :Complies with IEC 68-2-20 Temperature range : -30 °C to 80 °C Mechanical Cable O.D. : 6 – 15 mm Cable retention: ≥ 220 N (subject to cable O.D. and material) Lifetime : > 5000 mating cycles Wiresize : 4 mm² Wiresize : 12 AWG Wiring : screw type terminals or soldering Locking device: Quick Lock (latch) Material Contact plating : 4 µm Ag Contacts : Brass (CuZn39Pb3) Insert : PBTP 20 % GR Locking element : Zinc diecast (ZnAl4Cu1) Shell : Polyamide (PA 6 30 % GR) Strain relief : Polyacetal (POM) Note : Order should be minimum 10 pcs.
