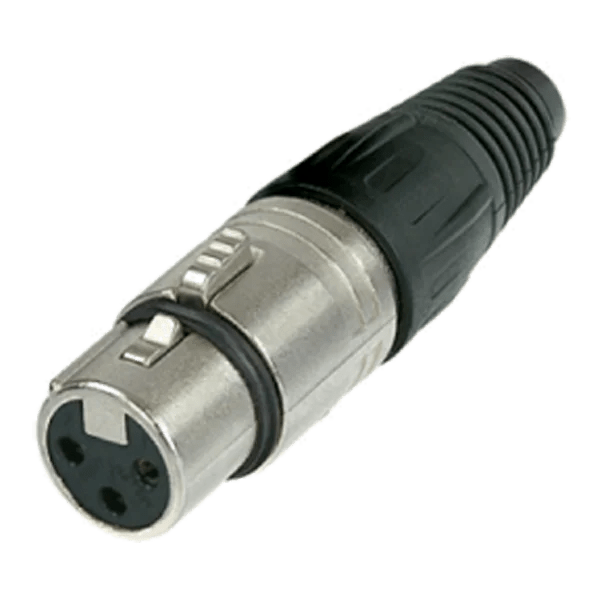

Neutrik NC3FX 3-Pin XLR Female Cable Connector 3 pole female cable connector with Nickel housing and silver contacts. The “industry standard” XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables. Neutrik Cable Connector Features & Benefits Rugged zinc diecast shell, long lasting and durable Chuck type strain relief system for secure clamping of cables Boot with rubber gland gives high protection against bending stresses Coloured rings and boots available for coding and marking UL recognized components Neutrik NC3FX 3 Technical Information Product Title : NC3FX Connection Type : XLR Gender : female Electrical Capacitance between contacts : ≤ 4 pF Contact resistance : ≤ 3 mΩ Dielectric strength : 1,5 kVdc Insulation resistance : > 10 GΩ (initial) Rated current per contact : 16 A Rated voltage : < 50 V Environmental Approvals : UL Flammability : UL 94 HB Standard compliance : IEC 61076-2-103 Protection class : IP 40 Solderability : Complies with IEC 68-2-20 Temperature range : -30 °C to 80 °C Mechanical Cable O.D. : 3.5 – 8.0 mm Insertion force : ≤ 20 N Withdrawal force : ≤ 20 N Lifetime : > 1000 mating cycles Wiresize : max. 2.5 mm² Wiresize : max. 14 AWG Wiring : Solder contacts Locking device : Latch lock Material Boot : Polyurethan Contact plating : 2 µm Ag over 2 µm Ni Contacts : Bronze (CuSn8) Insert : Polyamide (PA 6.6 30 % GR) Locking element : St3K32 (latch) / Ck 67 (spring) Shell : St3K32 (latch) / Ck 67 (spring) Shell plating : Nickel Strain relief : Polyacetal (POM) Note : Order should be minimum 10 pcs.
