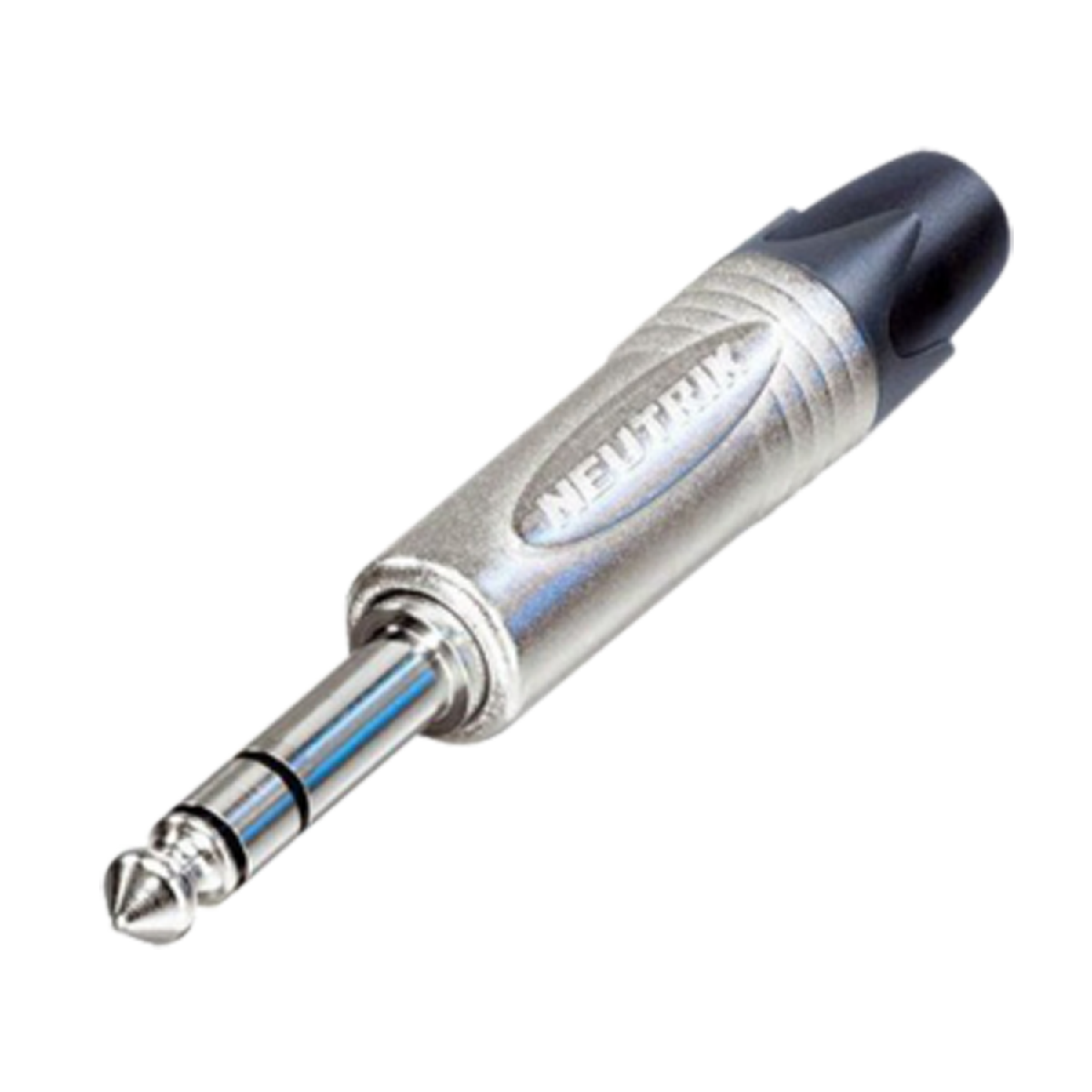

Neutrik-XLR Cable Connectors NP3X 3 pole 1/4″ professional phone plug, nickel contacts, nickel shell, the heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4″ plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jack fields (15.88 mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks. Features & Benefits Extra slim 1/4″ plug for highest packing density Robust diecast shell in stylish design Proven chuck type strain relief for reliable cable retention Sleek design for best handling convenience Precision machined one-piece contacts – avoid hook up of tip contact Technical Information Product Title : NP3X Connection Type :Plug Gender : male Electrical Capacitance between contacts : ≤ 7 pF Contact resistance :depends on mating connector mΩ Dielectric strength : 1 kVdc Insulation resistance : > 2 GΩ (initial) Rated current per contact : depends on mating connector A Rated voltage : < 50 V Environmental Standard compliance:IEC 60603-11 / EIA RS-453 Solderability :Complies with IEC 68-2-20 Temperature range : -20 °C to 65 °C Mechanical Cable O.D. : 4 – 7 mm Lifetime : > > 1000 mating cycles Wiresize : 1 mm² Wiresize : 18 AWG Wiring : Solder contacts Material Bushing: Polyacetal (POM) PU Contact plating : 2 µm Ni (Su) Contacts : Brass (CuZn39Pb3) Insert : Polyamide (PA 6.6 30 % GR) Shell : Zinc diecast (ZnAl4Cu1) Shell plating : Nickel Strain relief : Polyacetal (POM) Note : Order should be minimum 10 pcs.
